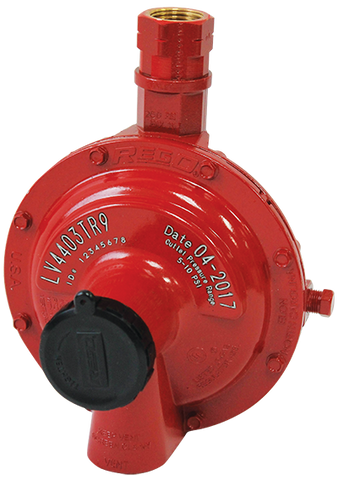

Rego LV4403SR and TR Series High Pressure First Stage Regulators

Rego LV4403SR and TR Series High Pressure First Stage Regulators



BULK ORDERS AND LESS-COMMON PRODUCTS MAY REQUIRE ADDITIONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY AND OTHER PRODUCT OPTIONS.


Provides accurate first stage regulation in two-stage bulk tank systems. Reduce tank pressure to an intermediate pressure of 5 to 10 PSIG. Also used to supply high pressure burners for applications like industrial furnaces or boilers. Also incorporated in multiple cylinder installations.



Features:

  • Incorporate integral relief valves for added system protection.
  • Large vent helps prevent blockage and has ¾” F.NPT thread for vent piping.
  • Bonnet vent positioned over outlet to avoid icing and contamination by foreign material.
  • Unique bonnet vent profile designed to minimize vent freeze over when properly installed.
  • Replaceable valve orifice and valve seat disc.
  • Straight-line valve closure reduces wear on seat disc.
  • Large molded diaphragm is extra sensitive to pressure changes.
  • Built in pressure tap has plugged 1⁄8” F.NPT outlet.
  • Plug can be removed with a 3⁄16” hex allen wrench.
  • Extra long lever arm provides uniform delivery pressure.
  • Brilliant red finish.
  • Integral Relief Included

Part Numbers:

Part Number Inlet Connection Outlet Connection Orifice Size Factory Delivery Pressure Adjustment Range* Vapor Capacity BTU/hr Propane**
LV4403SR4 ½” F.NPT ½” F.NPT ¼” 5 PSIG 1-5 PSIG 2,500,000
LV4403TR4 ½” F.NPT ½” F.NPT ¼” 10 PSIG 5-10 PSIG 2,500,000
LV4403SR9 F. POL ½” F.NPT ¼” 5 PSIG 1-5 PSIG 2,500,000
LV4403TR9 F. POL ½” F.NPT ¼” 10 PSIG 5-10 PSIG 2,500,000
LV4403SR96 F. POL ¾” F.NPT ¼” 5 PSIG 1-5 PSIG 2,500,000
LV4403TR96 F. POL ¾” F.NPT ¼” 10 PSIG 5-10 PSIG 2,500,000

* When used for final stage pressure control, must either incorporate integral relief valve or separate relief valve should be specified in accordance with NFPA Pamphlet 58.
** Maximum flow based on inlet pressure 20 PSIG higher than the regulator setting and delivery pressure 20% lower than the setting

Resources:

Also See:

We Also Recommend

Rego LV3403TR Series Compact First Stage Regulators

Rego LV3403TR Series Compact First Stage Regulators
Fisher 627 Pressure Reducing Regulator

Fisher 627 Pressure Reducing Regulator

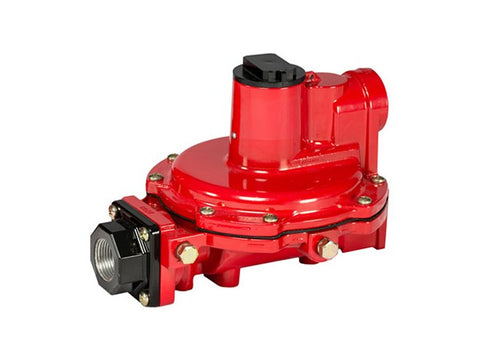

Fisher R622H First Stage Propane Regulator

Fisher R622H First Stage Propane Regulator

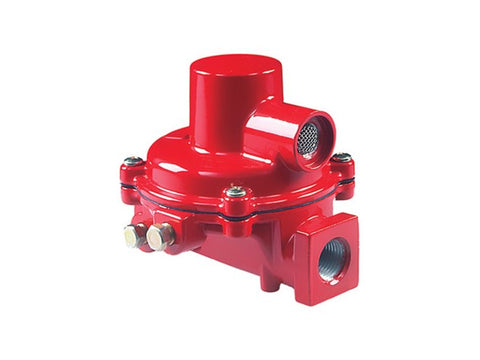

Fisher R122H First-Stage Regulator
