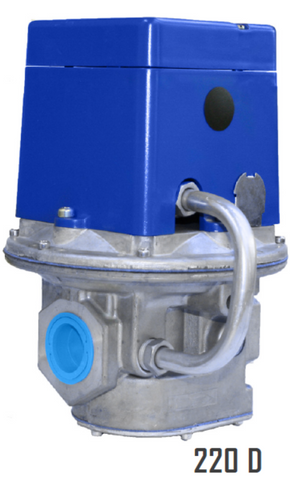

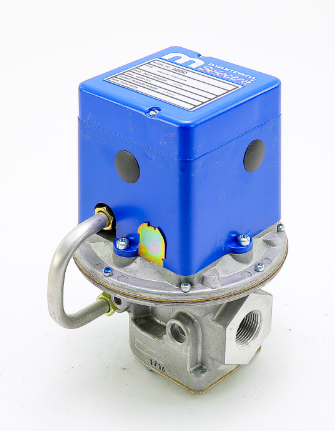

MAXITROL 220 SERIES PILOT LOADED DESIGN REGULATOR

Maxitrol 220 series regulator operates using a servo-operated design rather than the traditional spring-loaded regulators.

Specifications:

Pipe Sizes: 1" - 3" threaded NPT, 4" -125 LB. Flange (220J)

Housing Material: 220D, 220E, 220G, 220J Aluminum

Mounting:  Upright position only

Gas Types: Natural / Manufactured / Mixed gases, liquified petroleum gases, LP Gas & Air mixtures

Maximum Inlet: 10 PSI

Flow Rates: up to 50,000 SCFH

Emergency Exposure Limits: 25 PSI

Ambient Temperature Ranges: -40 to 200°F (-40 to 93°C)

Sensing Taps: Three positions can be tapped and plugged for measuring pressure.  The fourth position is used to supply inlet pressure to the pilot regulator.

Remote Sensing: 220D, 220E, 220G models may be ordered with remote sensing.  The internal sensing tube is omitted and external sensing taps are provided.  Add suffix letter “R” to model number when ordering.

NOTE: 220D, 220E, 220G, 220J are not CSA Certified

NOTE: “L” models available for outlet pressures under 1 PSI
