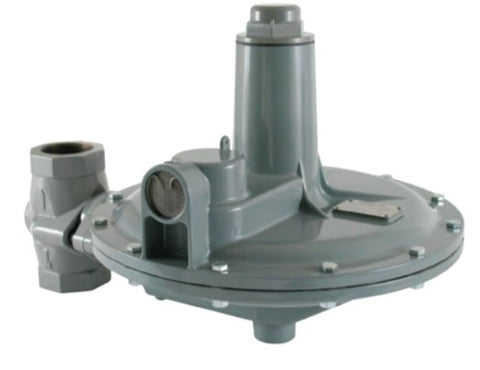

Marshall Excelsior S1202 Gas Pressure Regulator with Internal Relief
*Cross Reference: Fisher S202 and Belgas P202 model regulators.
SECOND STAGE / LOW PRESSURE INDUSTRIAL REGULATORS
BULK ORDERS OR LESS COMMON PRODUCTS MAY REQUIRE ADDITIONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY.
MORE OPTIONS AVAILABLE, PLEASE CALL OR EMAIL US FOF FURTHER INFORMATION
The MEGR-S1202/MEGR-CS1200 Series commercial/industrial regulators are large capacity, low pressure second stage units for installation at schools, bakeries, and similar applications. They contain a limited capacity internal relief valve and can be used in conjunction with either MEGR-1627 Series or MEGR-1630 Series high-pressure regulators. For high capacity installations, the MEGR-289H Series relief valve is required to be installed in the downstream system
Type: Adjustable/Inches WC or PSI
Orifice Diameter: 3/8”, 5/16”, 1/2” or 1”
Max. Inlet Pressure: 25 PSIG
Body Material: Cast Iron
Regulator Spring: Music Wire
Spring Case/Stem Guide/Disk Holder: Aluminum
Exterior Finish: Gray Powder Coat
Disk/ Diaphragm and O-Ring: Fabric Reinforced Nitrile (NBR)
Closing Cap Gasket: Neoprene
Features:
- Minimizes sudden downstream load changes
- Wide pressure range
Applications:
- Compressors
- Gas Engines
- Service Regulators
Parts / Accessories:
- Marshall Excelsior Spring for 1133 & S1202 Gas Pressure Regulator
- Marshall Excelsior Orifice for S1202 Gas Pressure Regulator
Resources:
- MEGR-S1202 Pressure Regulator Bulletin
- MEGR-S1202 Pressure Regulator Spec sheet
- MEGR-S1202 Pressure Regulator Installation Instructions
Flow Capacities:
Click to Enlarge:
