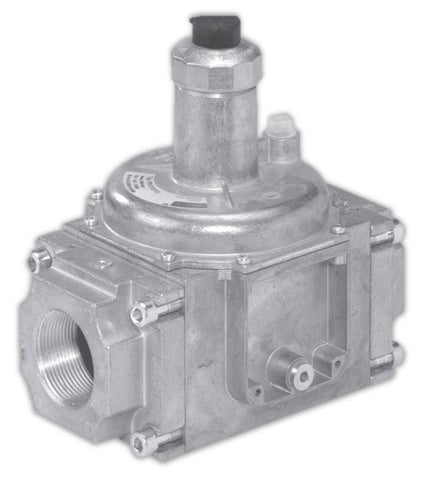

Dungs FRI 712/6 4-12"WC MFG#230475 Gas Appliance Pressure Regulators with integrated gas filter w/o flange connection set
CSA APPROVED
THIS PRODUCT REQUIRES ADDITIONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY.
Please call or email for information regarding Part numbers and prices not already listed
The FRI/6 balancing type pressure regulator combines a pressure regulator and a 50 micron gas filter in one housing. Various combinations are possible using the FRI/6 with the most of the DMV shutoff valves for a compact, modular system:
- Stand-alone pressure regulator and gas filter with threaded flanges, or direct mount to DMV sizes 701, 702 and 703 series safety shutoff valves.
- Regulator output pressure monitored by direct mounting an A2 type pressure switch. Additional ports to sense inlet and outlet pressure are also located on the threaded flanges.
- Heavy duty diaphragm construction for durability and strength.
- Steady, precise and instantaneous regulation of the outlet pressure.
Specifications:
- Max. operating pressure: 7 PSI (500 mbar) CE; 5 PSI (360 mbar) CSA
- Input pressure range: 2 to 200 in. W.C. (5 mbar to 500 mbar)
- Output pressure range:
- 4-12" W.C. (10 to 30 mbar) (Standard Blue Spring)
- Other adjustable Spring Ranges from 1 to 80 in. W.C. (2.5 mbar to 200 mbar); (see accessories below)
- Gas Filter: 50 micron; replaceable
- Ambient temperature rating:
- +5°F to +150 °F for up to 7 PSI for regulating behavior (+/- 10% of setpoint).
- -40°F to +150 °F: Diaphragms are suitable for the low temperature, but there may be out of range regulating behavior.
- CSA Certified for -40 °F to +150 °F for up to 5 PSI.
- -15 °C to +70 °C applies to the CE Marking.
Accessories:
- Dungs Flanges for FRI7../6 Gas Appliance Pressure Regulators
- Dungs Springs for FRI 705/707; FRS 705/503/505 Regulators
- Dungs Springs for FRI 710/712; FRS 710/510 Regulators
Resources:
Part Numbers and Accessories:
| Part Number | Mounts to DMV Type | Order Number | Size | Pressure Max Operating (CSA) |
| FRI 705/6 | DMV 701 | 230472 | 1/2" - 1" NPT | 5 PSI |
| FRI 707/6 | DMV 701 | 230473 | 1/2" - 1" NPT | 5 PSI |
| FRI 710/6 | DMV 702/3 | 230474 | 1" - 2" NPT | 5 PSI |
| FRI 712/6 | DMV 702/3 | 230475 | 1" - 2" NPT | 5 PSI |
Flanges:
| Part Number / Description | Mounts to DMV Type | Order Number | Size |
| FRI 705/6 -FRI 707/6 Flange | DMV 701 | 222371 | 1/2" NPT |
| FRI 705/6 -FRI 707/6 Flange | DMV 701 | 222368 | 3/4" NPT |
| FRI 705/6 -FRI 707/6 Flange | DMV 701 | 221999 | 1" NPT |
| FRI 710/6 -FRI 712/6 Flange | DMV 702 or DMV 703 | 222369 | 1" NPT |
| FRI 710/6 -FRI 712/6 Flange | DMV 702 or DMV 703 | 222370 | 1-1/4" NPT |
| FRI 710/6 -FRI 712/6 Flange | DMV 702 or DMV 703 | 222003 | 1-1/2" NPT |
| FRI 710/6 -FRI 712/6 Flange | DMV 702 or DMV 703 | 221997 | 2" NPT |
