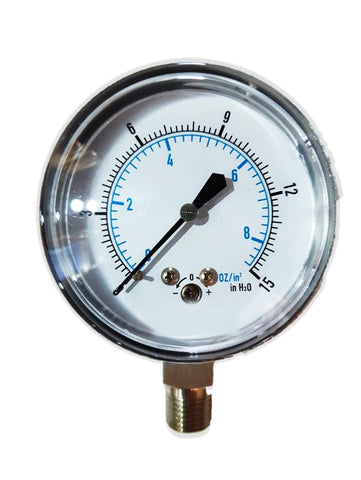

Brass Diaphragm Pressure Gauges (Dry) (QTY: 1)

Diaphragm gauges are sensitive instruments used in low pressure applications not exceeding 10 PSI. The diaphragm capsule is an elastic metal sensing element comprised of two thin wall diaphragms that are soldered together to make the capsule. Typical applications include air flow indicators, liquid level indicators, leak testers, natural gas gauges and any other application that requires precise measurement of pressures below 10 PSI.

PLEASE ALLOW ADDITIONAL TIME FOR SHIPMENT OF THIS PRODUCT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY.

CONTACT US REGARDING INFORMATION ABOUT CANADIAN REGISTRATION NUMBERS, AND MORE QUANTITY BASED DISCOUNTS!

Specifications

Case Material
Drawn Steel
Fill Fluid
None
Lens Material
Acrylic
Dial
White aluminum with black lettering
Pointer
Black aluminum
Accuracy
± 2-1-2% Full scale
Internals & Diaphragm
Brass
Temperature Limits
-20°C to 60°C ambient and medium
Pressure Ranges
-100” H20 Vacuum to 10 psi


Click to Enlarge
