RTC Direct Fired Heater Temperature Control Kit
Includes:
-
DFC-X (1) Direct Fired Temperature Control,
-
TS-01 (1) Temperature Sensor,
-
DFTD (1) Direct Fired Temperature Dial And Overlays (5)
DFC-X:
- Direct-Fired Temperature Control with Integral Selector
- Rated for -40°F (-4°C)
- Built in Maintenance Mode
- Mounting Footprint Matches Other Industry Standard Controls
- Built in 10 Second Low Fire Start Timer
- 0-24V DC Modulating Output
- 24V AC Power
NORMAL OPERATION AND INSTALLATION:
- Option for remote temperature selection or integral temperature selection
- Remote Dial Auto Detection
- Fits ¼” Wiring Terminals
TS-01 Temperature Sensor:
- Direct replacement for the MN DFTS
- 40°F-250°F (4°C - 121°C)
- Fits ¼” wiring terminals
- Mounting footprint matches other industry standard controls

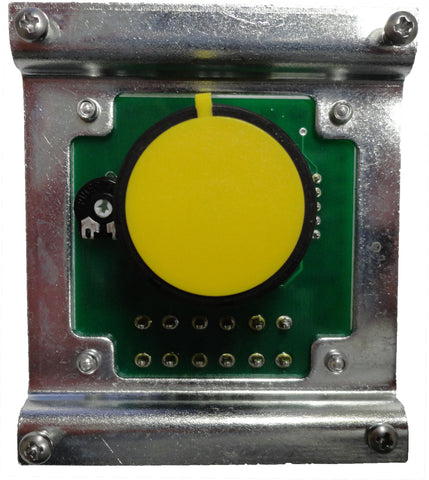

DFTD w/ 5 Overlays:
- Direct-Fired Temperature Dial
- 5 temperature ranges with one dial
- 40°F-90°F (4°C - 32°C)
- 80°F-130°F (26°C - 54°C)
- 120°F-170°F (48°C - 76°C)
- 160°F-210°F (71°C - 99°C)
- 200°F-250°F (93°C - 121°C)
- Combine dials for dual temperature selection
- Fits ¼” wiring terminals
- Mounting footprint matches other industry standard controls
