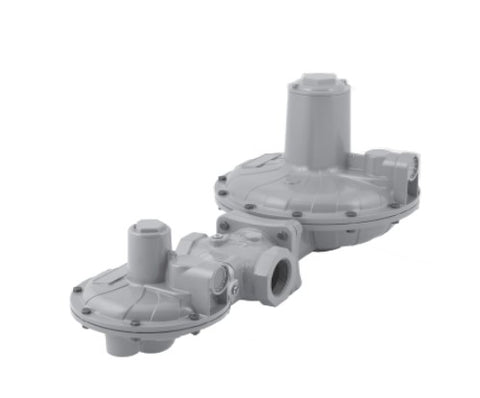

Fisher CS803IT Pressure Reducing Regulator with True-Monitor Protection
The Fisher CS800 Series regulator with True Monitor Protection has been engineered to provide the operation of a conventional two-regulator wide-open monitor set into one compact device without the need for a downstream control line. With an increased outlet pressure range and reduced downstream pressure buildup, this generation offers significant performance gains while at the same time offering installation ease with simplified setpoint adjustment and the flexibility of dual axis vent rotation. Performance and versatility translate into reduced cost of installation, from time-saving installation, to eliminating piping and control lines, to a reduced overall meter set footprint.
PLEASE ALLOW ADDITIONAL TIME FOR SHIPMENT OF THIS PRODUCT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY AND OTHER PRODUCT OPTIONS.
Features:
- Flow Optimized Disks provide the Maximum Flow for your Application
- Largest number of Overpressure Protection Offerings in the Industry
- Wide Variety of Body Sizes and End Connections
- Body Materials Available in Gray Cast Iron, Ductile Iron and Steel
- Fixed Factor/Pressure Factor Measurement (PFM) Accuracy Capabilities
- Only Standard Tools required for Pressure Adjustment and Orifice Removal
- Simplified Maintenance
Available Models:
- Fisher CS803IT Model with Internally Registered Primary Regulator with Internally Registered Integral Monitor
- Cast Iron Body on all units
- Straight-Through Valve Body Construction on all units
